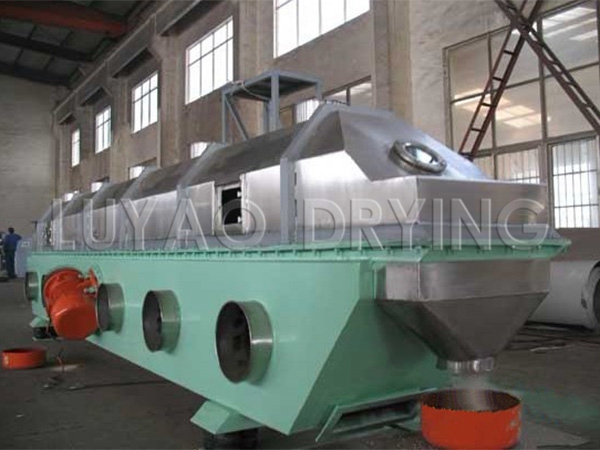

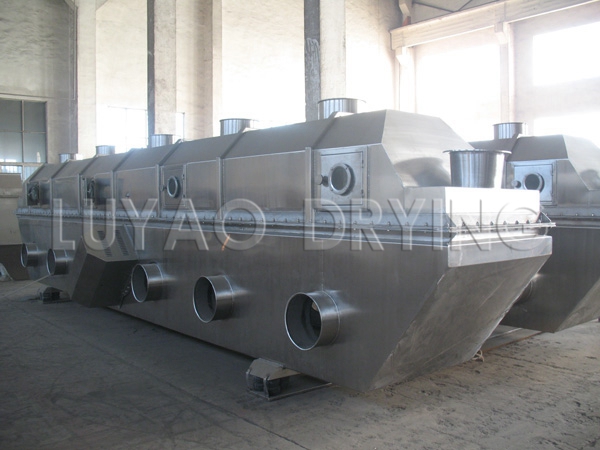

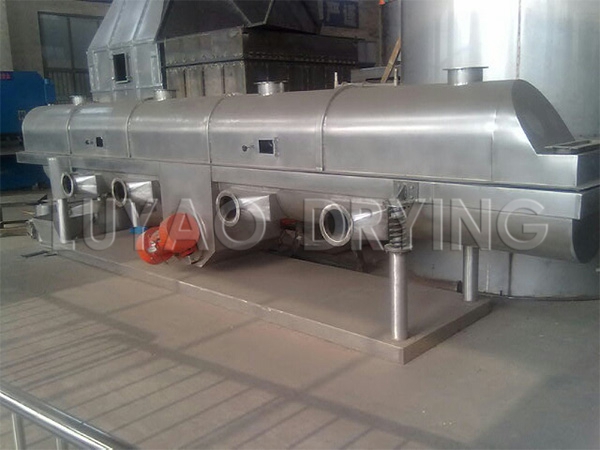

ZLG series vibration fluidized bed dryer
Detailed Description
Working principle The
??
material enters into the machine from the feed inlet. Under the
action of vibration force, the material is thrown along the horizontal
fluidized bed and continuously moves forward. After the hot air passes
through the fluidized bed and exchanges heat with the wet material, the
humid air passes through the cyclone separator. Dust removal by exhaust
1:3 discharge. Dry material is discharged from the discharge inlet.
Schematic
Adaptable materials are
? ?
suitable for the drying and cooling of powdery and granular
materials in the chemical, pharmaceutical, food, dehydrated vegetables,
food, minerals and other industries. Such as: citric acid, monosodium
glutamate, borax, ammonium sulfate, compound fertilizer, radish, soybean
meal, distiller's grains, seeds, slag, sugar and so on.
Performance characteristics
◎Vibration source is driven by vibration motor, smooth operation, convenient maintenance, low noise, long life.
◎ Fluidized and uniform, no dead space and blow-through phenomenon, uniform drying and cooling products can be obtained.
◎Adjustability is good and width is applicable. The layer thickness
and the speed of movement in the machine and the change of the full
amplitude can achieve stepless adjustment.
◎ damage to the surface of the material is small. It can be used for
the drying of fragile materials. When the material particles are
irregular, it will not affect the work effect.
◎ Adopt fully enclosed structure. Effectively prevent
cross-infection between materials and air, and clean the operating
environment.
◎ High mechanical efficiency and thermal efficiency, good
energy-saving effect, energy saving 30-60% compared to general drying
equipment.
Technical specifications
| Size / Model | A | B | C | D | E | F | Weight (kg) |
| ZLG3×0.30 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| ZLG 4.5×0.30 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| ZLG 4.5×0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| ZLG4.5×0.60 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1670 |
| ZLG6×0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| ZLG6×0.60 | 6000 | 600 | 1700 | 1,000 | 500 | 1700 | 2410 |
| ZLG6×0.75 | 6000 | 750 | 1850 | 1,000 | 600 | 1850 | 2840 |
| ZLG6×0.9 | 6000 | 900 | 2000 | 1,000 | 600 | 1850 | 3160 |
| ZLG7.5×0.60 | 7500 | 600 | 1850 | 1,000 | 600 | 1850 | 3200 |
| ZLG7.5×0.75 | 7500 | 750 | 2000 | 1,000 | 600 | 1850 | 3600 |
| ZLG7.5×0.9 | 7500 | 900 | 2100 | 1,000 | 600 | 1850 | 4140 |
| ZLG7.5×1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| model |
Fluidized bed area (M2) |
Inlet temperature ( o C) |
Outlet temperature ( o C) |
Evaporation capacity (kg) |
Vibration motor | |
| model | Power Kw | |||||
| ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1×2 |
| ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 |
| ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5×2 |
| ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 |
| ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 |
| ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.60 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 |
| ZLG7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 |
| ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51-6 | 3.0×2 |
★ Above evaporation is the maximum evaporation.
