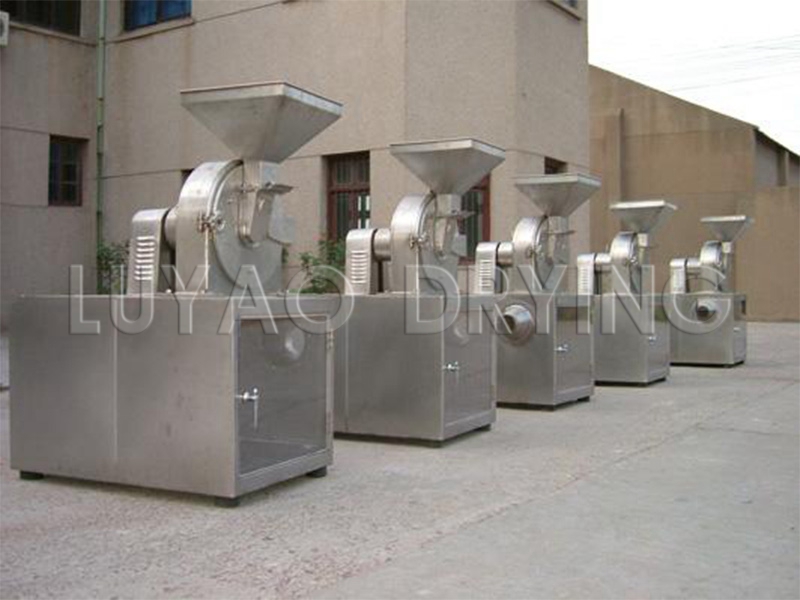

30B Series Universal High-efficiency Crusher (set)
Detailed Description
Features and Uses
?? This machine
(set) is suitable for the pulverization of brittle materials in the
pharmaceutical, chemical, food, agricultural and other industries. It is
a new generation of crushing equipment that combines grinding and
vacuuming.
Structure and principle
??
The unit utilizes the relative movement between the movable tooth
plate and the fixed tooth plate, so that the material is crushed by the
impact and friction of the teeth and the material and the impact between
them. The crushed material automatically enters the predator bag by the
effect of rotary centrifugal force, and the dust is recovered by the
dust box through the bag filter. The machine is designed according to
the "GMP" standard, all of which are made of stainless steel. No dust is
flying in the production process. And can improve the utilization of
materials, reduce business costs, has reached the international advanced
level.
Technical specifications
| model | unit | 20B/20B unit | 30B/30B unit | 40B/40B unit | 60B/60B unit |
| Production capacity | Kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed | r/min | 4500 | 3800 | 3400 | 2800 |
| Feed particle size | Mm | 6 | 10 | 12 | 15 |
| Smashing fineness | Mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| Smash motor power | Kw | 4 | 5.5 | 11 | 15 |
| Vacuum fan power | Kw | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | Kg | 250 | 320 | 550 | 680 |
| Dimensions (L×W×H) | Mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| Dimensions (Units) (L×W×H) | Mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
