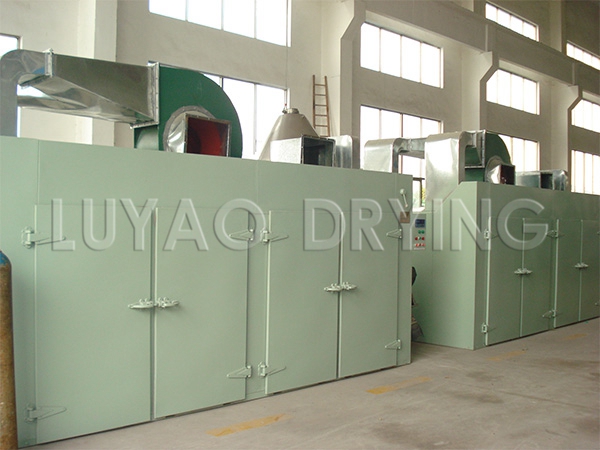

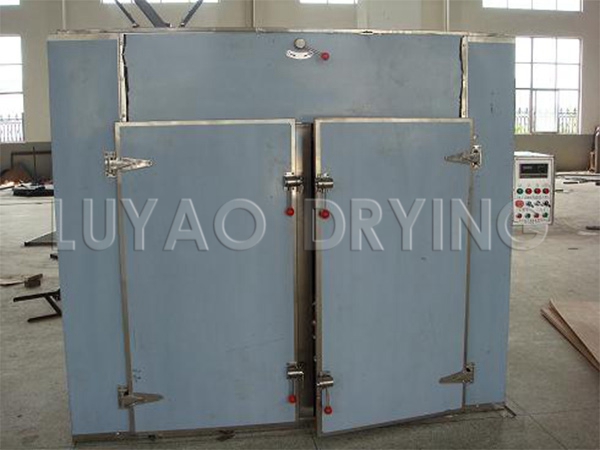

CT-C series hot air circulation oven
Detailed Description
Product introduction
??CT-C series hot air circulation oven is equipped
with low noise and high temperature axial fan and automatic temperature
control system. The whole circulation system is completely closed, so
that the thermal efficiency of the oven is increased from 3-7% in the
traditional drying room to the current 35- 45%, the highest thermal
efficiency up to 50%. The success of the CT-C hot air circulation oven
has made the hot air circulation oven in China reach the advanced level
at home and abroad. Save a lot of energy for our country and improve the
economic benefits of the company. In 1990, the State Administration of
Pharmaceuticals released the industry standard, and the uniform model is
RXH.
Schematic
◎ The heating source is steam, electricity, far infrared, and electric vapor for users' choices.
◎Using temperature: steam heating 50-140 o C, maximum 150 o C;
◎ electricity, far infrared temperature 50-350 o C;
◎Auto-control system and computer control system are available for users to choose from.
◎Common steam pressure is 0.02-0.8Mpa(0.2～8kg/m 2 ).
◎Equipped with electric heating, calculate 15KW according to type I, practical 5-8kw/h;
◎ Special requirements when ordering instructions;
◎ non-standard oven price negotiable;
◎ use the temperature is greater than 140 o C or less than 60 o C, to indicate when ordering;

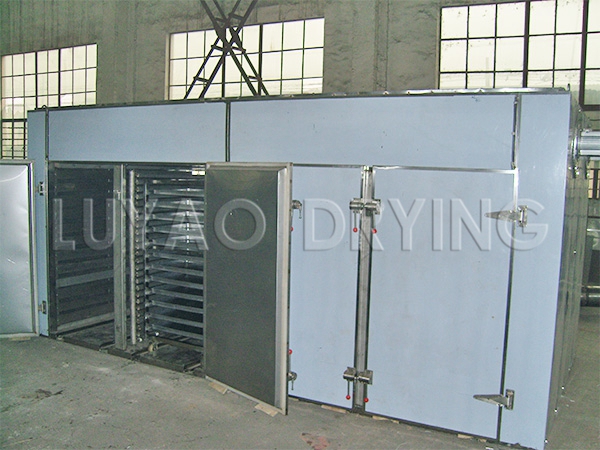

◎ factory factory car baking, baking tray size uniform, interchangeable;
◎ baking plate size: 460 × 640 × 45 (mm).
Performance characteristics
??Most
hot air circulation in the box, high thermal efficiency, save
energy. The use of forced ventilation, the box is equipped with
adjustable split air plate, the material is evenly dry, the heat source
can be steam, hot water, electricity, far infrared, and a wide
choice. The whole machine is low in noise and balanced in
operation. Temperature control, easy installation and maintenance. With a
wide range of application, it can dry various materials and is a
universal drying equipment .
Adaptable materials are
??suitable
for heat curing, drying and dehydration of materials and products in
the pharmaceutical, chemical, food, agricultural and sideline products,
aquatic products, light industry, heavy industry and other
industries. Such as raw materials, crude drugs, Chinese Herbal Medicine,
extracts, powders, granules, granules, water pills, bottles, pigment
dyes, dehydrated vegetables, dried fruits, sausages, plastic resins,
electrical components, baking and so on.
Technical specifications
| Industry standard model | Technical Specifications Model Specifications | Each drying amount (kg) | With power (kw) | Consumption of steam (kg/h) | Radiating area (m 2 ) | Air volume (m3/h) | Temperature difference between upper and lower ( o C) | With baking plate | Dimensions Width × Depth × Height | Supporting car | equipment weight |
| RXH-14-B | CT-I | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-II | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-III | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-IV | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-CO | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-IA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | twenty four | 1400×1200×2000 | 1 | 1,000 |
| RXH-14-C | CT-C-I | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-II | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-IIA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-III | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-IIIA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-IV | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | High-efficiency high-temperature far-infrared sterilization oven power matching according to temperature requirements | 1200×1000×1600 | 1 | 1200 | |||||||
