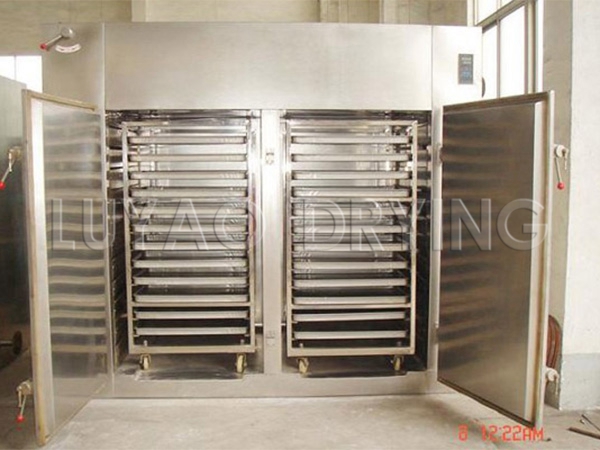

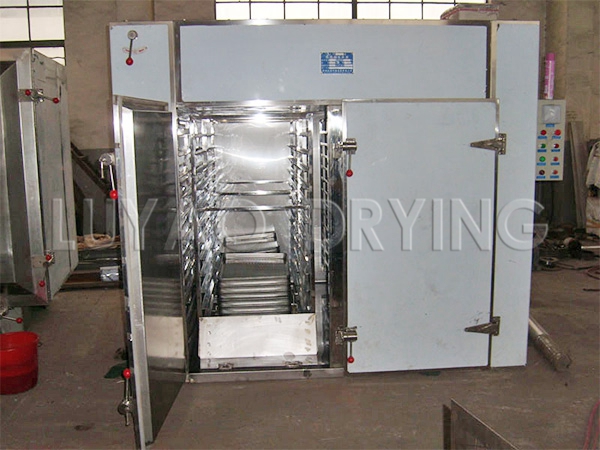

Pharmaceutical GMP Oven
Detailed Description
Product Description
◎There are three types of heating sources: steam, electricity, and steam.
◎Using temperature: steam heating 50-140°C, maximum 150°C; electric heating 50-350°C;
◎Automatic temperature control and recording by recorder;
◎Full internal welding of the tank wall, circular transitions at all transitions No dead ends.
◎The whole machine has good sealing performance. The unique guide rail
sealing device ensures the sealing performance of the whole machine.
◎ The air inlet is equipped with a high-efficiency air filter; The air
outlet is equipped with a medium efficiency air filter.
◎Double door double ovens for mechanical interlocking;
◎All parts in the oven can be quickly disassembled and installed quickly to facilitate cleaning;
◎The control system is equipped with text display and touch screen to choose from;
◎The whole machine meets "GMP" requirements .
Schematic
Technical specifications
| Model/Specifications |
Each drying amount (kg) |
Fan power (kw) |
Consumption of steam (kg/h) |
Bake car (vehicle) |
Baking plate (only) |
Width × depth × height (mm) |
Upper and lower temperatures (°C) |
| GMP-O | 35 | 0.45 | 8 | / | 16 | 1130×1100×1750 | ±2 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300×1200×2000 | ±2 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300×2200×2000 | ±2 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430×2200×2000 | ±2 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460×2200×2290 | ±2 |
