Product

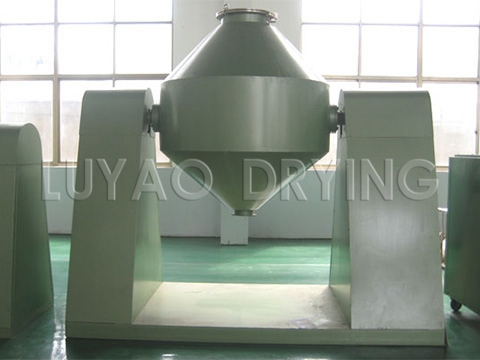

SZH series double cone mixer
Profile：SZH series double cone mixer transfers the powder or granular material into the double cone container through vacuum or manually. As the capacity rotates continuously, the material in the container undergoes complex impact motion to achieve even mixing. The machine saves energy, is easy to operate, has low labor intensity, and has high work efficiency. This machine is suitable for the mixing of powdery and granular materials in the pharmaceutical, chemical, food, building materials and other industries.
Detailed Description
Performance characteristics
◎ This
machine will send powder or granular material into the double cone
container through vacuum or artificial feeding. With the continuous
rotation of the container, the material will perform complex impact
movement in the container to achieve even mixing.
◎ The machine saves energy, is easy to operate, has low labor intensity, and has high work efficiency.
Adaptable Materials
◎
This machine is suitable for the mixing of powdery and granular
materials in the pharmaceutical, chemical, food, building materials and
other industries.
Technical specifications
| Specifications\Project | Total volume L | Working volume L | Feeding amount kg | Feed speed rpm | Power kw | Weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1,000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1,000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
