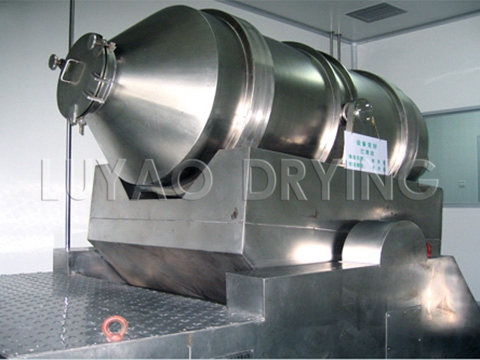

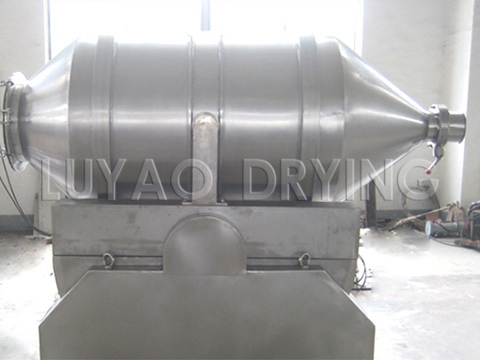

EYH Series Two-dimensional Motion Mixer
Detailed Description
Working principle
??
Two-dimensional mixer mainly consists of three parts: drum, swing
frame and frame. The rotating drum is mounted on a swinging frame and is
supported by four rollers and axially positioned by two stop wheels.
Among the four supporting rollers, two of the driving wheels are dragged
by a rotating power system to rotate the rotating drum. The swing frame
is driven by a set of crank rocker mechanisms. The crank rocker
mechanism is on the frame and the swing frame is supported by the
bearing assembly on the frame.
Performance Features
??
The drum of the EYH two-dimensional blender can simultaneously perform
two movements, one for the rotation of the drum and the other for the
swing of the drum with the swing frame. The mixed material rotates,
flips, and mixes with the rotating drum in the drum, and at the same
time, the back and forth mixing movement occurs along with the swing of
the drum. Under the joint action of these two movements, the material is
fully realized in a short time. the mix of. EYH two-dimensional blender
is suitable for mixing all powder and granular materials.
Schematic
Technical specifications
| Specifications | Volume (L) | Loading factor | Loading weight (kg) | Overall size (mm) | Power (kw) | ||||||
| A | B | C | D | M | H | Rotating | swing | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1,000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1,000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1,000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
NOTE: Material Press bulk specific gravity 0.6 g of / cm & lt . 3 is a meter, such as beyond, indicate when ordering.
